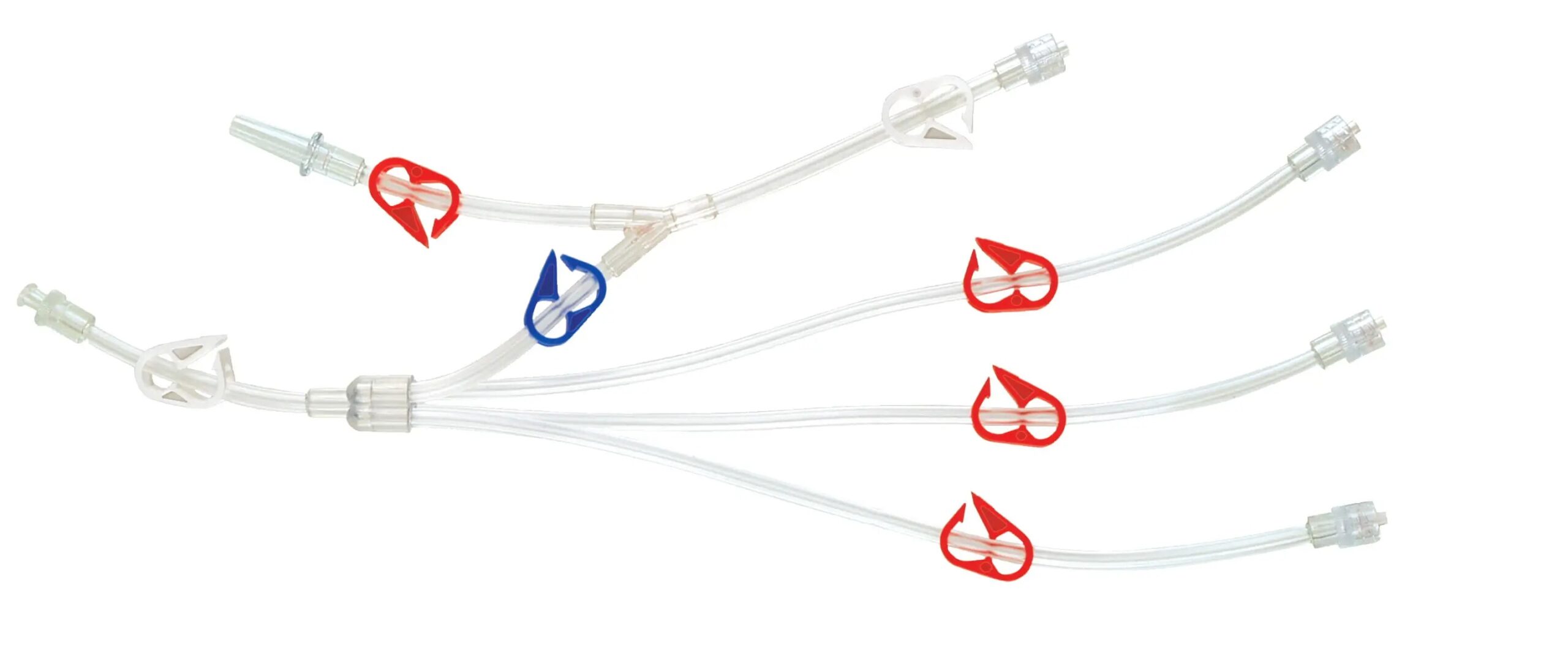

Cardioplegia Adapter — multi-way manifold with colour-coded pinch clamps, Luer lock connector and tubing

Sterile · Single-Use · Cardioplegia Circuit Connector

Product Overview:

The Cardioplegia Adapter is a sterile, single-use medical device intended to provide a secure connection between compatible components of a cardioplegia delivery system during cardiac surgical procedures. It connects to the aortic root cannula or vessel cannulae and is used for the delivery of cardioplegia solution or for venting the heart during cardiopulmonary bypass. Manufactured from medical-grade, biocompatible materials — a polycarbonate connector, LDPE Luer lock cap, polypropylene pinch cock and PVC tubing — it is available in different configurations (2-Way and 4-Way) with colour-coded clamps. The adapter is designed to facilitate the connection and controlled transfer of cardioplegia solution between compatible tubing, cannulae, catheters or other components of a cardioplegia delivery circuit.

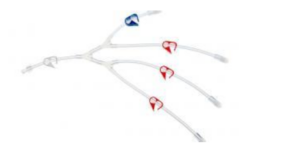

Cardioplegia Adapter — multi-way manifold with colour-coded pinch clamps, Luer lock connector and tubing

Technical Specifications

Product Name Sterile Cardioplegia Adapter
Generic Name Cardioplegia Adapter
Device Category Disposable Perfusion Set / Circuit Connector
Variants 2-Way and 4-Way; supplied with colour-coded clamps
Dimensions 3.0 x 5.5 x 37 mm
Materials of Construction Connector: Polycarbonate;  Luer lock cap: LDPE;  Pinch cock: Polypropylene;  Tubing: Poly Vinyl Chloride (PVC)
Connection Luer lock with connector; 6% (Luer) taper fittings (EN 20594)
Sterilization Ethylene Oxide (EO) gas (20% EO : 80% CO2)
Sterility EO sterile · Pyrogen-free · Latex-free · DEHP-free
Usage Single use / disposable (single patient use)
Shelf Life 5 years from date of manufacture
Storage Conditions 0–40 °C, RH 0–70%; store in a cool, dry place; do not expose above 49 °C
Device Classification Class B (MDR-2017, India)
Quality System Manufactured under ISO 13485:2016 certified facility

Key Features

  • Manufactured from medical-grade, biocompatible materials — polycarbonate connector, LDPE Luer lock cap, polypropylene pinch cock and PVC tubing.
  • Connects to the aortic root cannula or vessel cannulae for delivery of cardioplegia solution or venting the heart.
  • Available in 2-Way and 4-Way configurations with colour-coded clamps.
  • Luer lock connector with 6% (Luer) taper fittings for a secure connection.
  • Permits customisation of the cardioplegia circuit — connect multiple cannulae to a single inlet source.
  • Allows switching between antegrade and retrograde delivery of cardioplegia.
  • Provides the option for attaching a vent line; additional adapters extend the circuit length.
  • Leak-free at the joints and free from blockage.
  • Sterile (EO), pyrogen-free, latex-free, DEHP-free and single use only.

Intended Use
The Cardioplegia Adapter is intended to connect compatible components of a cardioplegia delivery system and facilitate the controlled transfer of cardioplegia solution during cardiac surgical procedures. It connects to the aortic root cannula or vessel cannulae and is intended for the delivery of cardioplegia solution or venting the heart during cardiopulmonary bypass, and for adapting between different compatible connector or tubing configurations within the cardioplegia circuit. It is intended for use by qualified healthcare professionals trained in cardiac surgery and cardiopulmonary bypass procedures, and is intended for all age groups.
